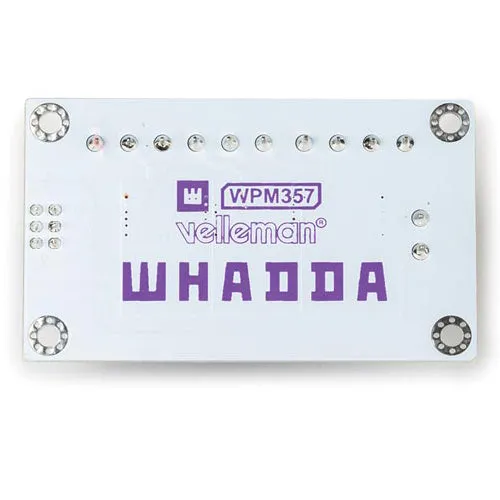

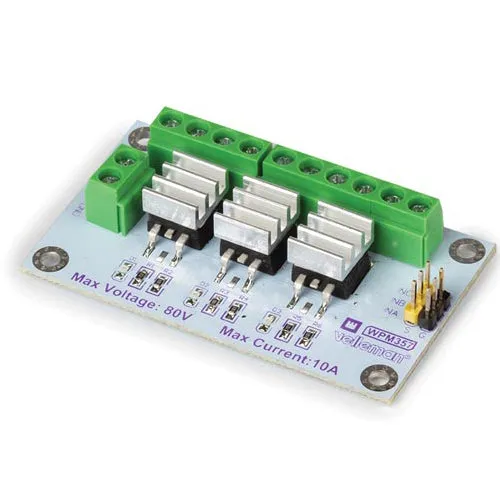

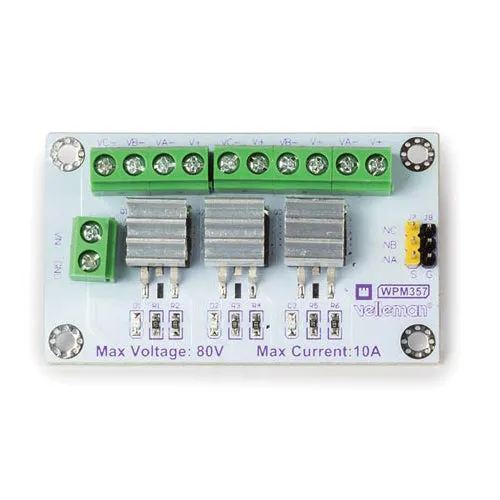

This module uses a 3-channel MOS switch similar to a relay element. Use it to drive a servo, high current LED strips, and more!

Four 3 mm holes are provided so you can mount the module onto other devices.

Features

• status indicator LEDs
• output control terminal
• 4 x 3 mm fixing holes for mounting

Specifications

• working voltage: VIN terminal is less than DC 40 V
• operating current : < 10 A
• operating temperature: -20 ~ 60° C
• dimensions: 66 x 38 x 12 mm
