Manufacturer Cat No: 111-006-12

Range: 0 mm - 150 mm
Resolution: 0,01 mm or 0.0005 in
Accuracy: ±0,03 mm

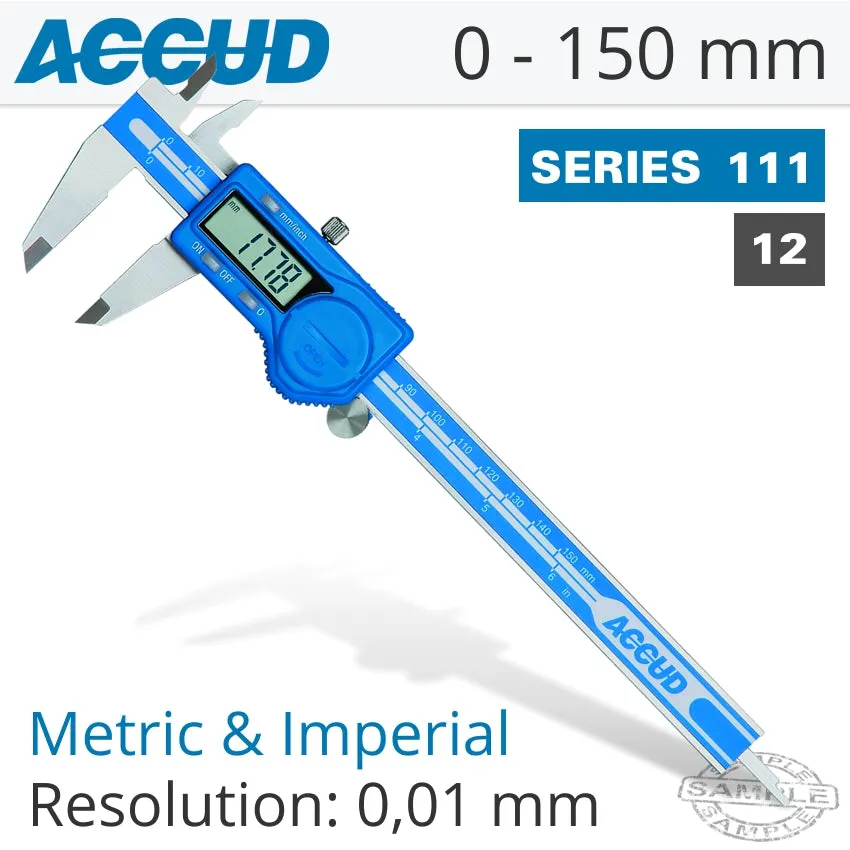

Electronic caliper with digital output

Workshop electronic caliper with measuring range of 0 -150mm | 6' and measuring resolution 0,01mm / 0.0005'. It fully meets the DIN862 standard and equipped with a data output socket for recording measurements by computer.

Made of stainless steel.

Features at a glance

• Resolution: 0.01mm / 0.0005'
• Buttons: on/off, zero, mm/inch
• Data output (cable code:100-11or 100-12)
• Automatic power on/off
• Meet DIN862 Standard
• Made of stainless steel

Technical parameters:

Description	Spec
Measurement range:	0 - 150 mm | 0 - 6'
The length of the jaws h:	40 mm
Resolution:	0,01 mm / 0.0005'
Accuracy:	± 0,03 mm
Dimension L:	236 mm
Dimension a:	21 mm
Dimension b:	16 mm
Dimension c:	16 mm
Standard:	DIN862
ABS function	NO
Automatic shutdown:	YES
mm / inch switch:	YES
Off / On button:	YES
Data output:	YES
Lock type:	screw
Body material:	stainless steel
Included:	caliper, 2 batteries, plastic case.

---
