Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Contact Form | DPDT |
| Current Rating | 5 A |
| Function | Multi-Function |
| Maximum Operating Temperature | 55 C |
| Minimum Operating Temperature | -20 C |
| Mounting Type | Panel Mount |
| Number of Pins | 11 Pin |
| Power Rating | 2 kVA |
| Product Header | TMR48 Series Analog Electronic Timers |
| Relay Type | Mechanical Relay |
| Series | |
| Termination | 11-Pin Octal |
| Timing Range | 0.02 Sec. to 300 Hrs. |
| Voltage Rating | 250 VAC |
| Voltage, Control | 240 VAC ; 240 VDC |
| Voltage, Switching | 5A @ 250VAC |
Overview

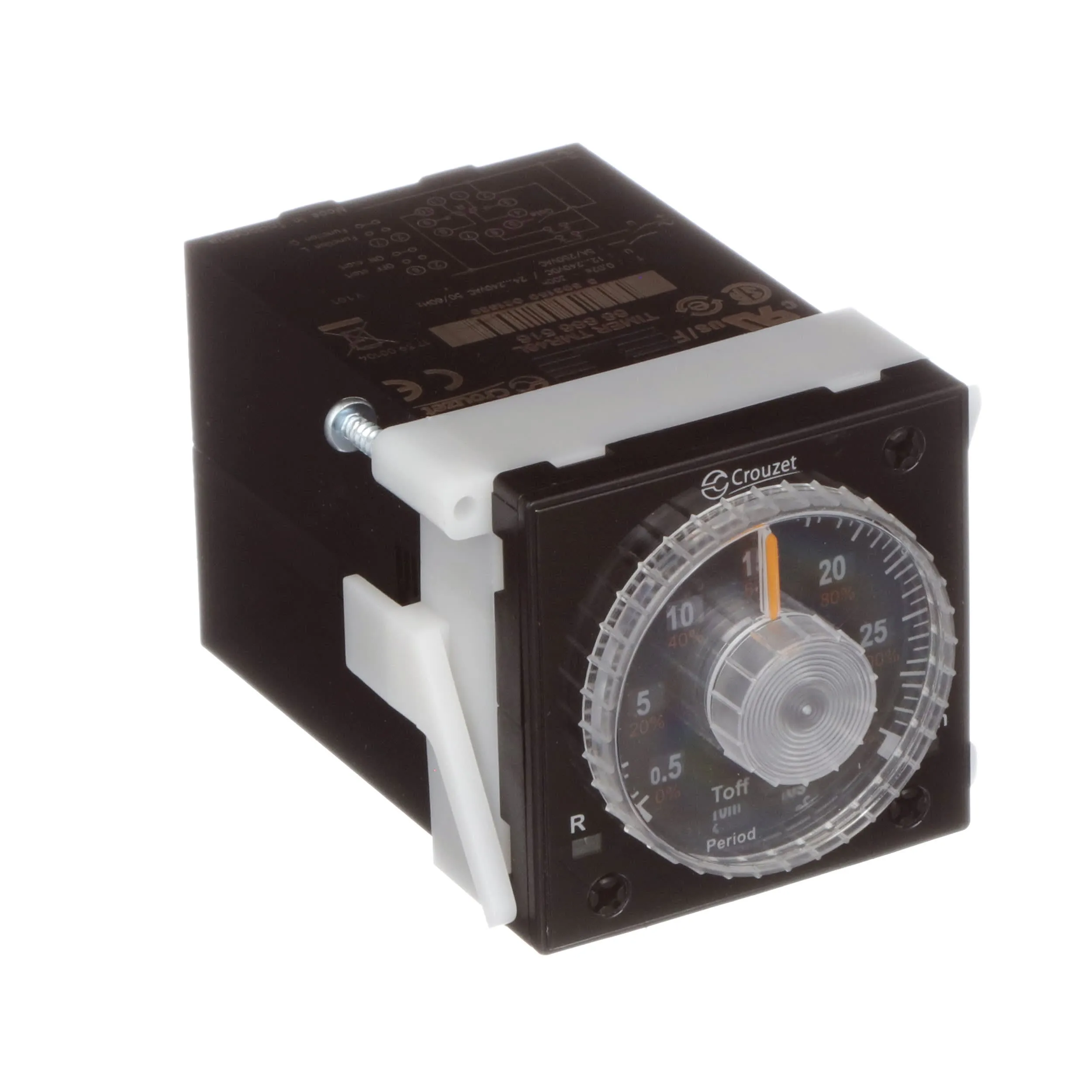

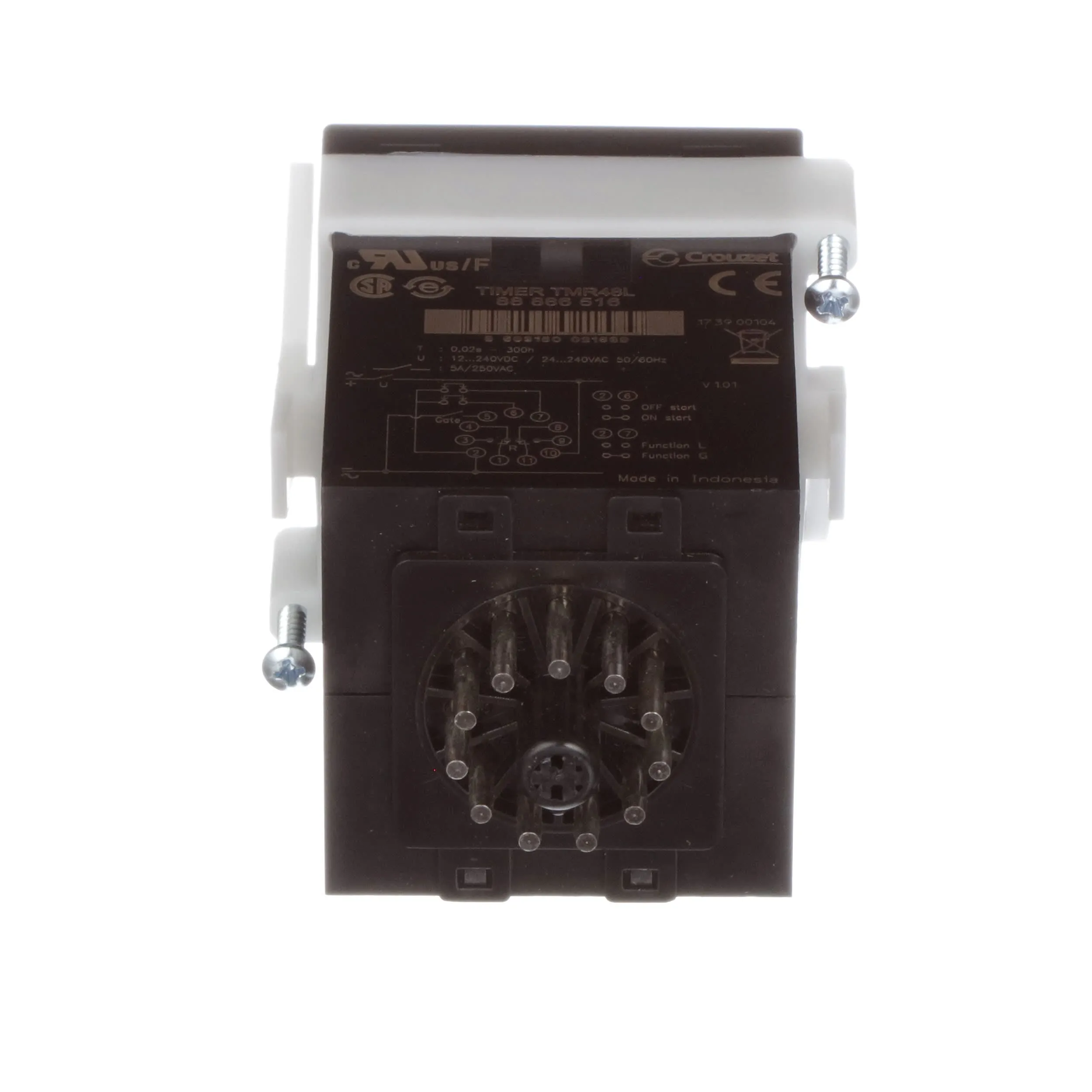

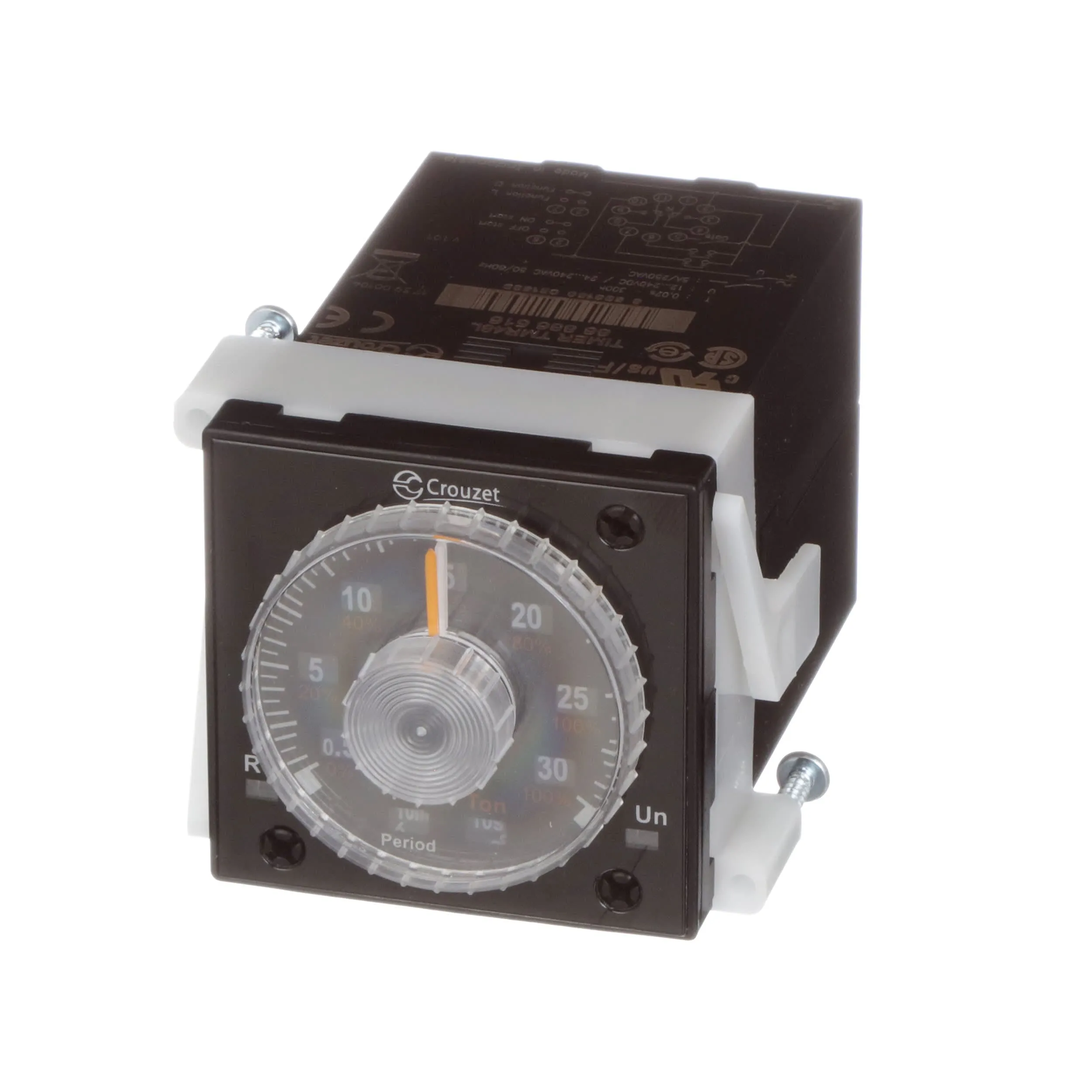

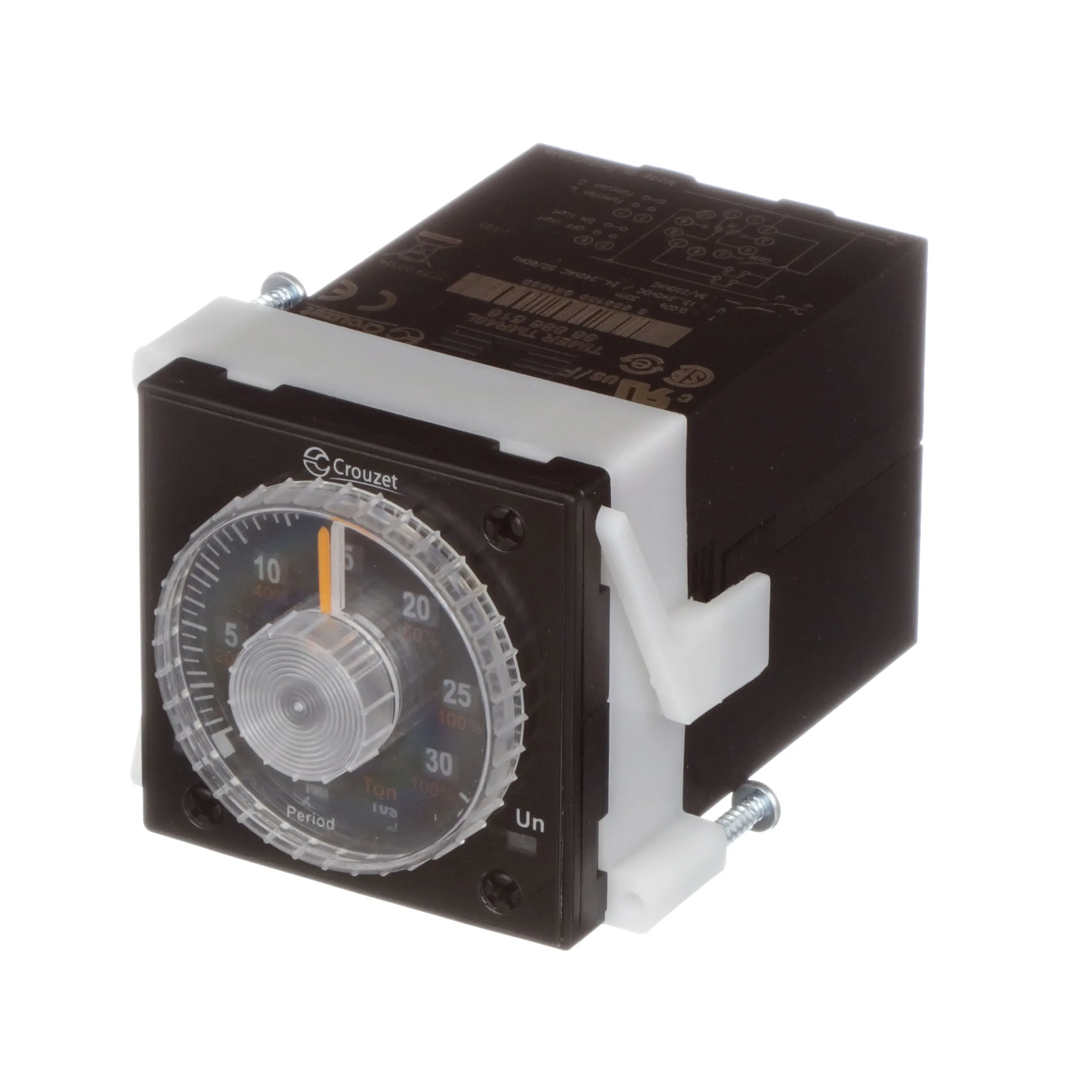

These multi-time range timers are housed in a 1⁄16 DIN (48 × 48 mm) enclosure. A large dial face allows easy setting and direct reading. Time delay is adjustable from 0.1 seconds to 10 hours. Two LEDs display relay output status and “power on”. All models offer DPDT output relays rated at 5 A, 250 VAC. Supply Voltage: 12-240 VDC/24-240 VAC. Dimensions: 1.9" H × 1.9" W × 3.7" L (48 × 48 × 94 mm). Operating Temperature: 14°C to 122°C. UL recognized, CSA certified.
