Product Details
＋

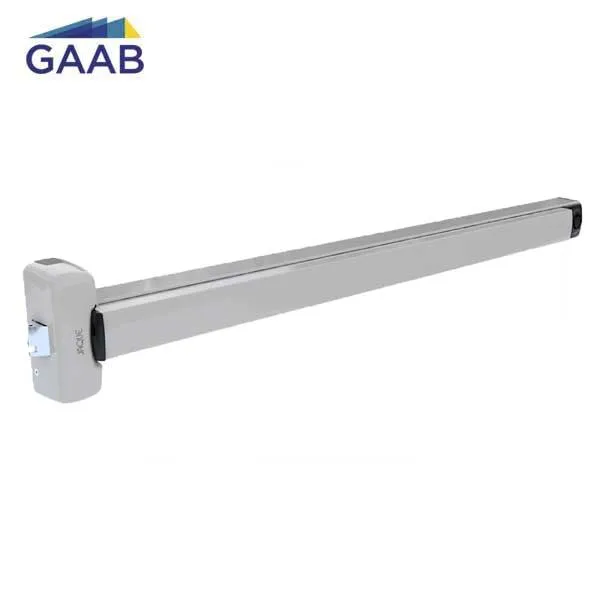

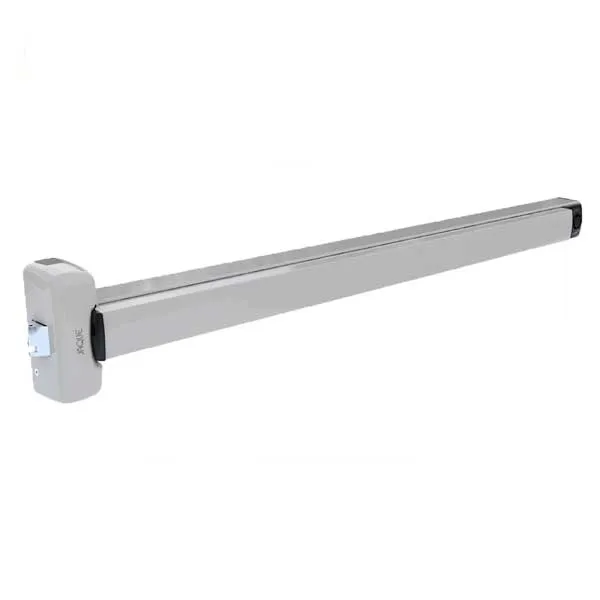

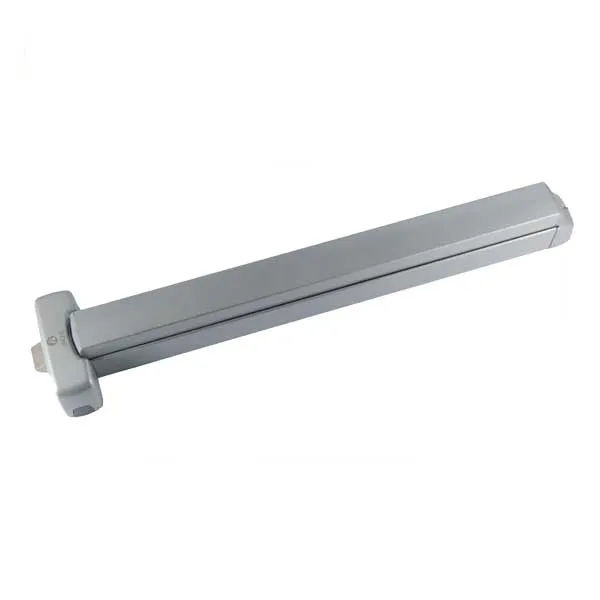

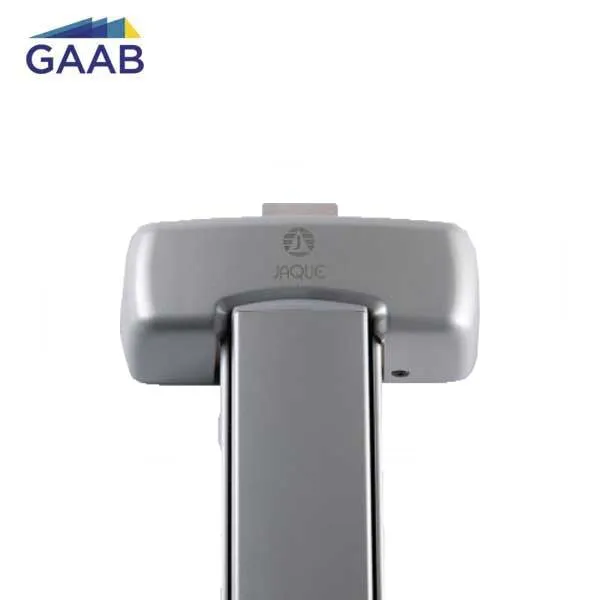

GAB-T320-04
- Panic Exit Device
- Easy installation
- Modular and Reversible
- 12VDC Powered (battery not included)
- Manual activation and deactivation
- Suitable for single doors
- Can be used for double doors ( with sold separately).
- Fully adjustable
- Dogging / undogging system
- Total nominal length of the device:
- Standard length: 33“ (850 mm)
- Minimum length: 16“ (400 mm)
- Suitable for doors up to 8’ (2440 mm) height – 4’ (1220 mm) width
- Max weight 440 lbs (200 kgs)
- To use an exit trim with this device you MUST use a compatible Gaab Exit Trim (listed below)
| Extruded aluminum-made rail case and touch bar measurements: | 47.3 in. -15.8 in. (maximum and minimum length) |
| Material: | Zamak-made front and back covers. 0.07 in. thickness Steel. |
| Finish: | High-performance epoxy Satin Chrome paint finish with high strength and durability. |
| Application: |
For single doors. Can be used for double doors ( with sold separately). Suitable for steel, wood, aluminum, glass. |
| Electrical Siren: |
open-door warning system |
| Max Dimensions: | Suitable for doors up to 99.2126 in. height and 51.9685 in. width. |
| Max Weight: | 440.925 lbs. |
| Handing: | Modular and Reversible |
| Latch: | Three-point latching option for single doors. |
| Warranty: | 2-year manufacturer warranty |
| Dogging: | Includes dogging / undogging system |
| Certifications: | IRAM and INTI listed. Approved under UNE EN-1125 standards (European) Approved with 200,000 opening cycles. |
To use an exit trim with this device you MUST use a compatible Gaab Exit Trim:
