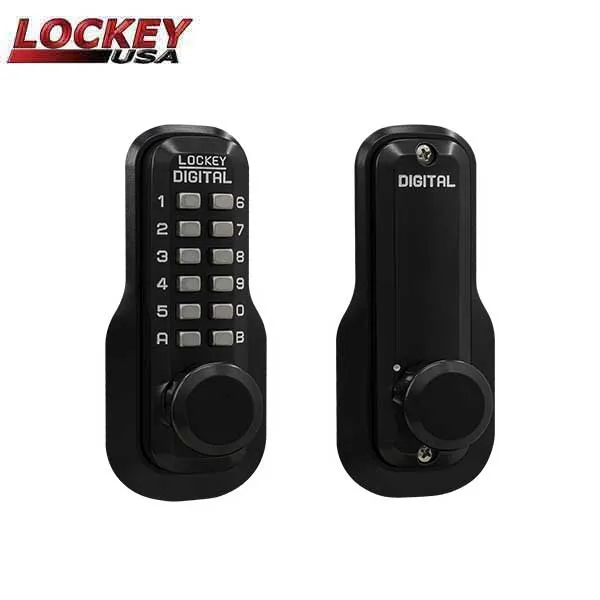

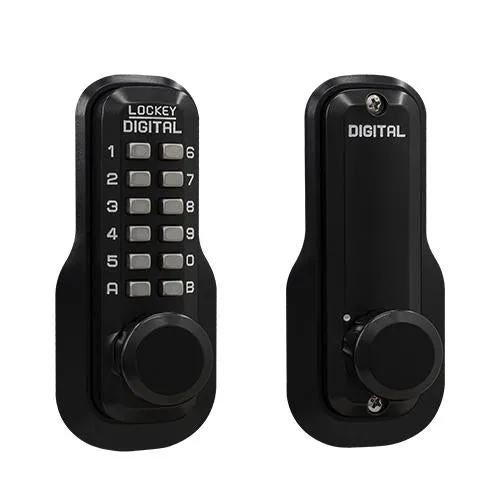

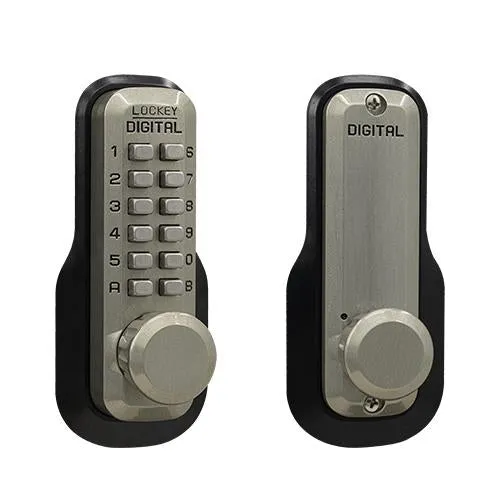

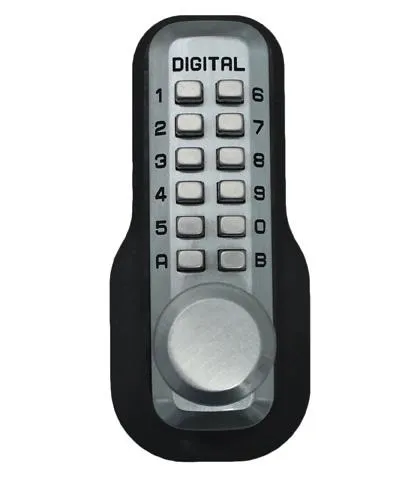

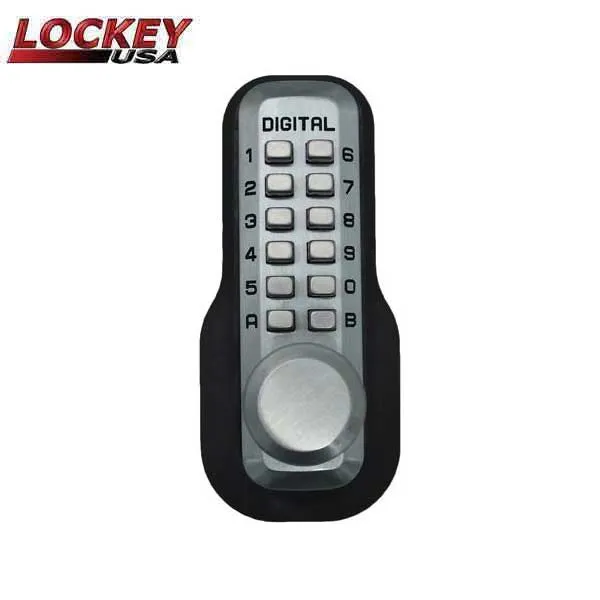

M230

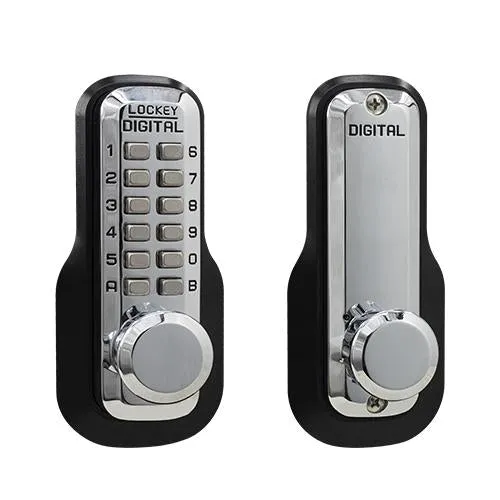

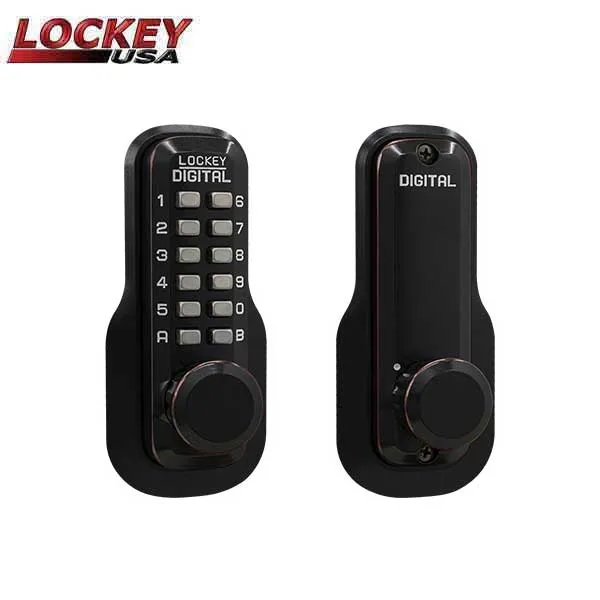

The M230 Mechanical Keyless Deadlocking Spring Latch locks automatically every time the door is closed, for maximum security. For added security, the deadlocking spring latch head contains a free-spinning, stainless steel burglar proof plunger.

Ideal for

- Residential Entry Doors
- Garage Doors
- Commercial Doors

Features

• Automatically locks when door is closed
• Comes standard with 2 3/8" latch-2 3/4" available upon request
• Changeable Handing
• Covers a standard 2 1/8" hole
• Easy to change code
• Fits all doors 1 3/8" - 2" thick

Specifications

DIMENSIONS	4 7/8" L x 1 7/16" W x 1 3/4" D - Total Coverage (w/ Trim Plates): 5 5/8" x 2 1/2"

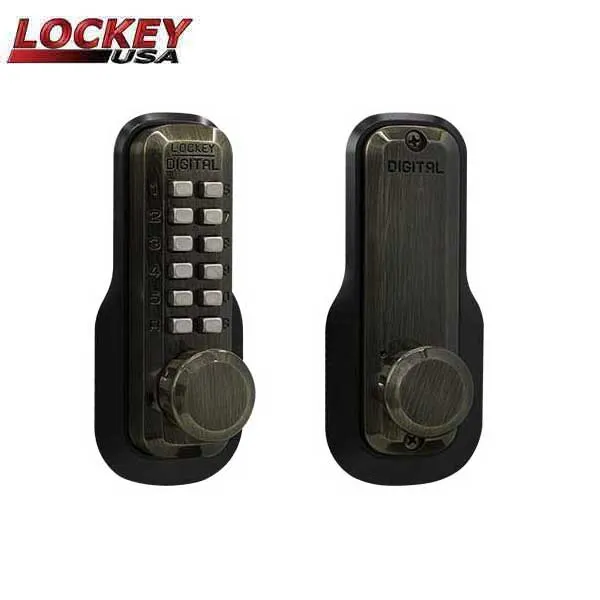

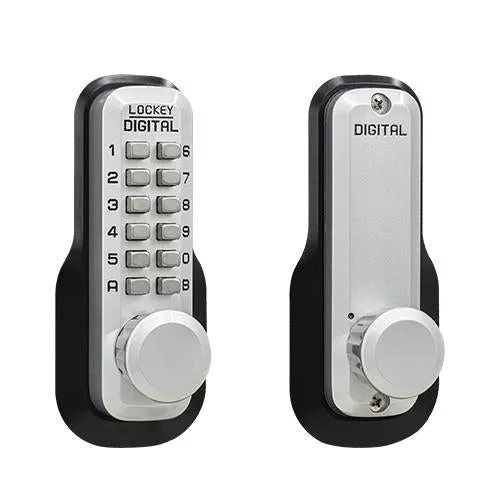

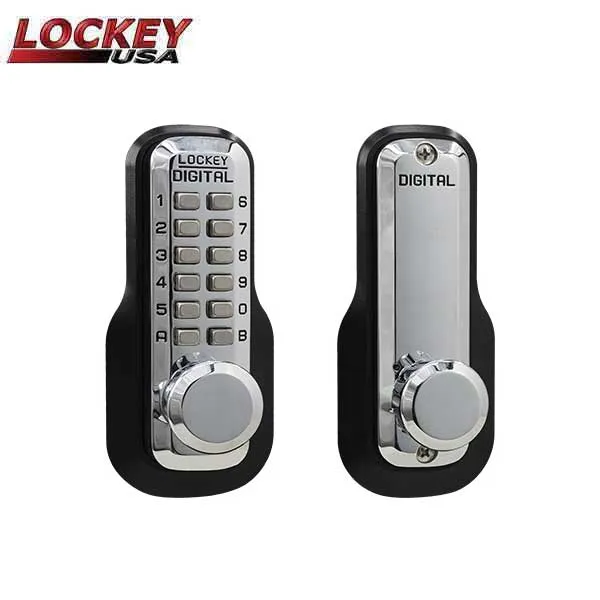

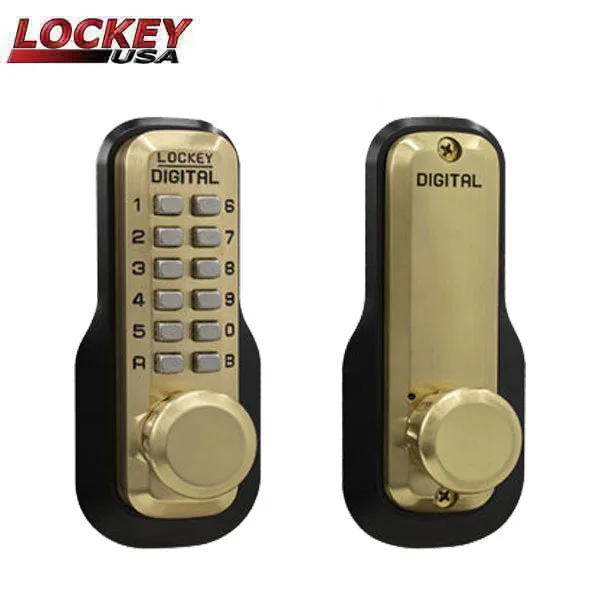

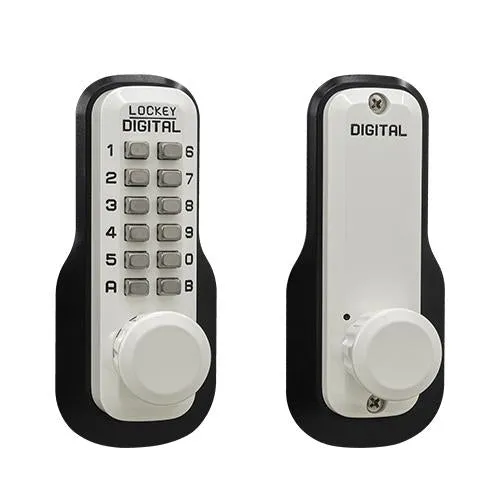

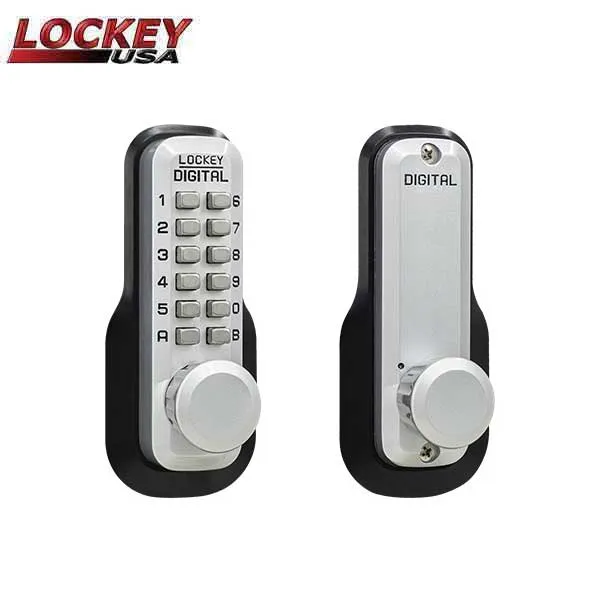

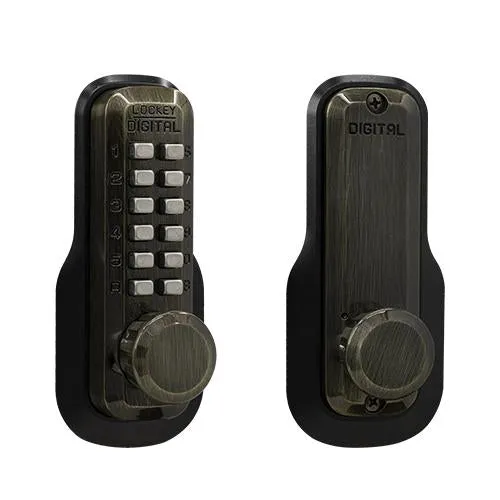

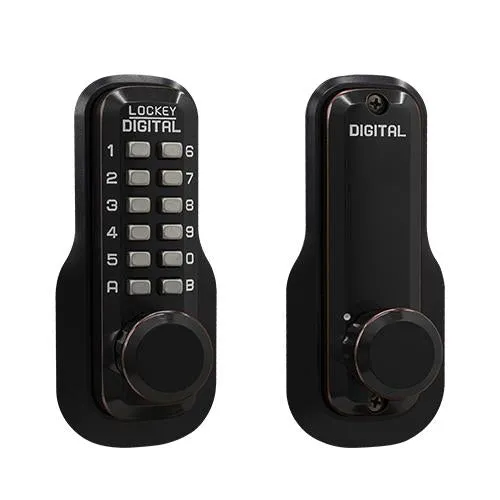

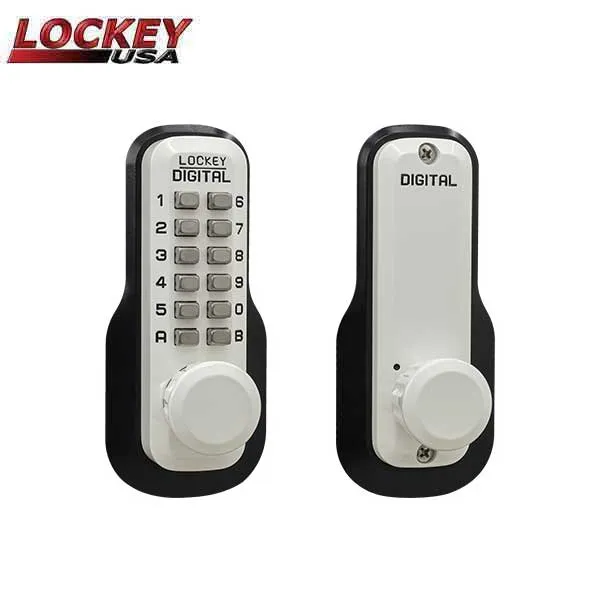

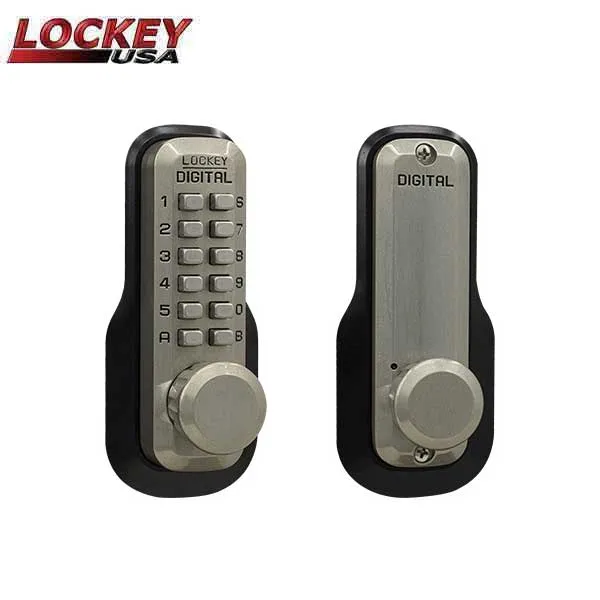

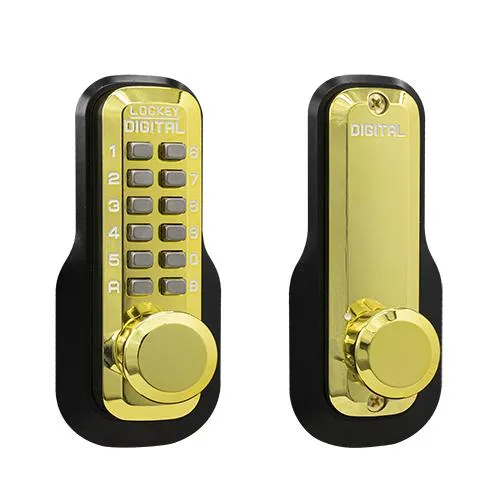

FINISHES AVAILABLE	Antique Brass; Bright Brass; Satin Chrome; Satin Nickel; Jet Black; White; Oil Rubbed Bronze; Bright Chrome; Marine Grade (Special Finish)
DOOR THICKNESS	1 3/8” to 2”
LATCH	Adjustable backset latch
TOTAL COVERAGE WITH TRIM PLATES	5 5/8″ x 2 1/2″
DOOR PREP	Covers standard 2 1/8″ with provided trim plates Edge Bore: 1"
MATERIAL	Zinc-plated Steel with Teflon coated stainless steel interior components
APPLICATION	Exterior & Interior Use Weather Resistant
WARRANTY	Lifetime Mechanical
