INTRODUCTION:

• The YoLink "Finger" garage door button robot
• Activates your existing garage door operator button by depressing the button with a motorized actuator

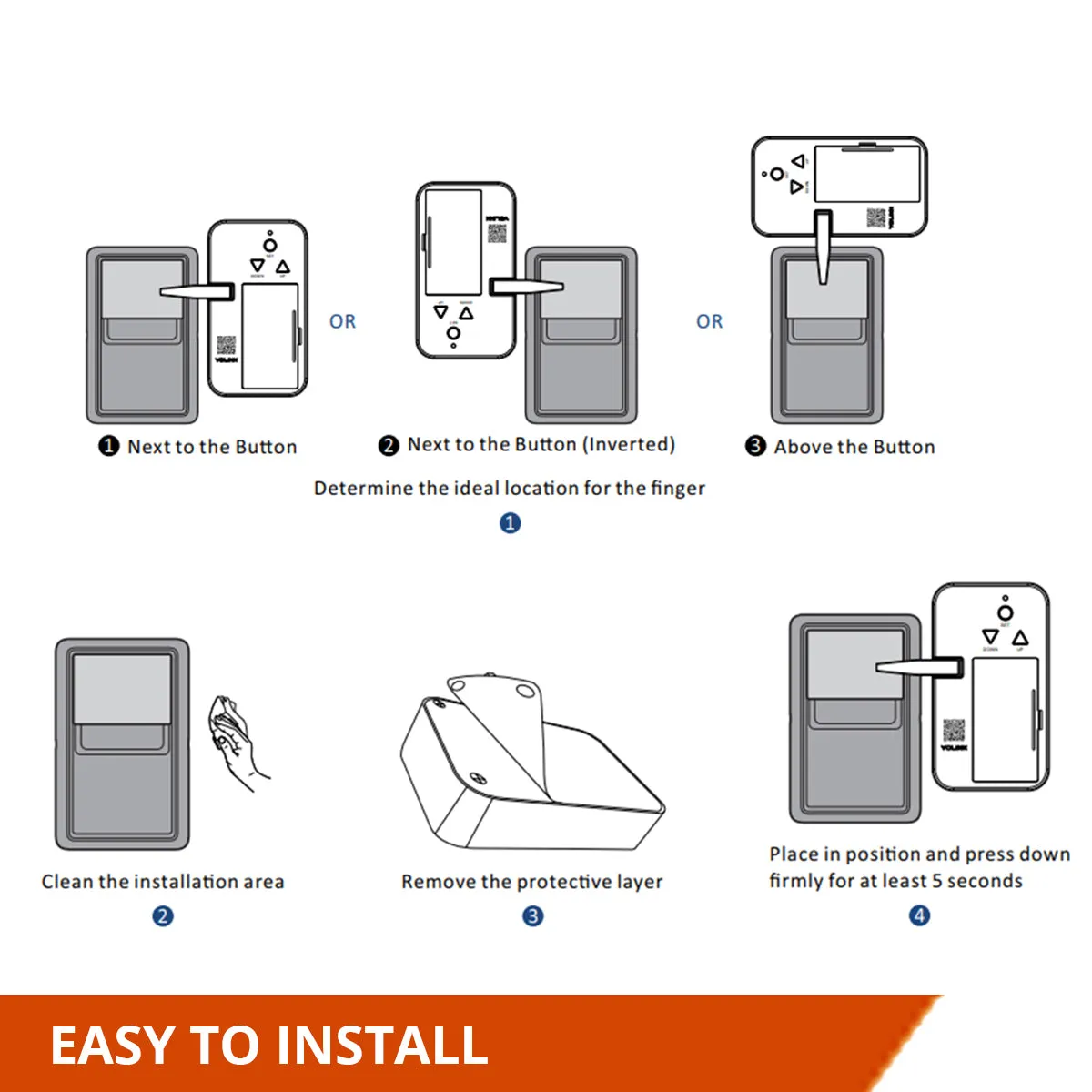

• Tool-free, ladder-free, wireless installation in minutes

FEATURES:

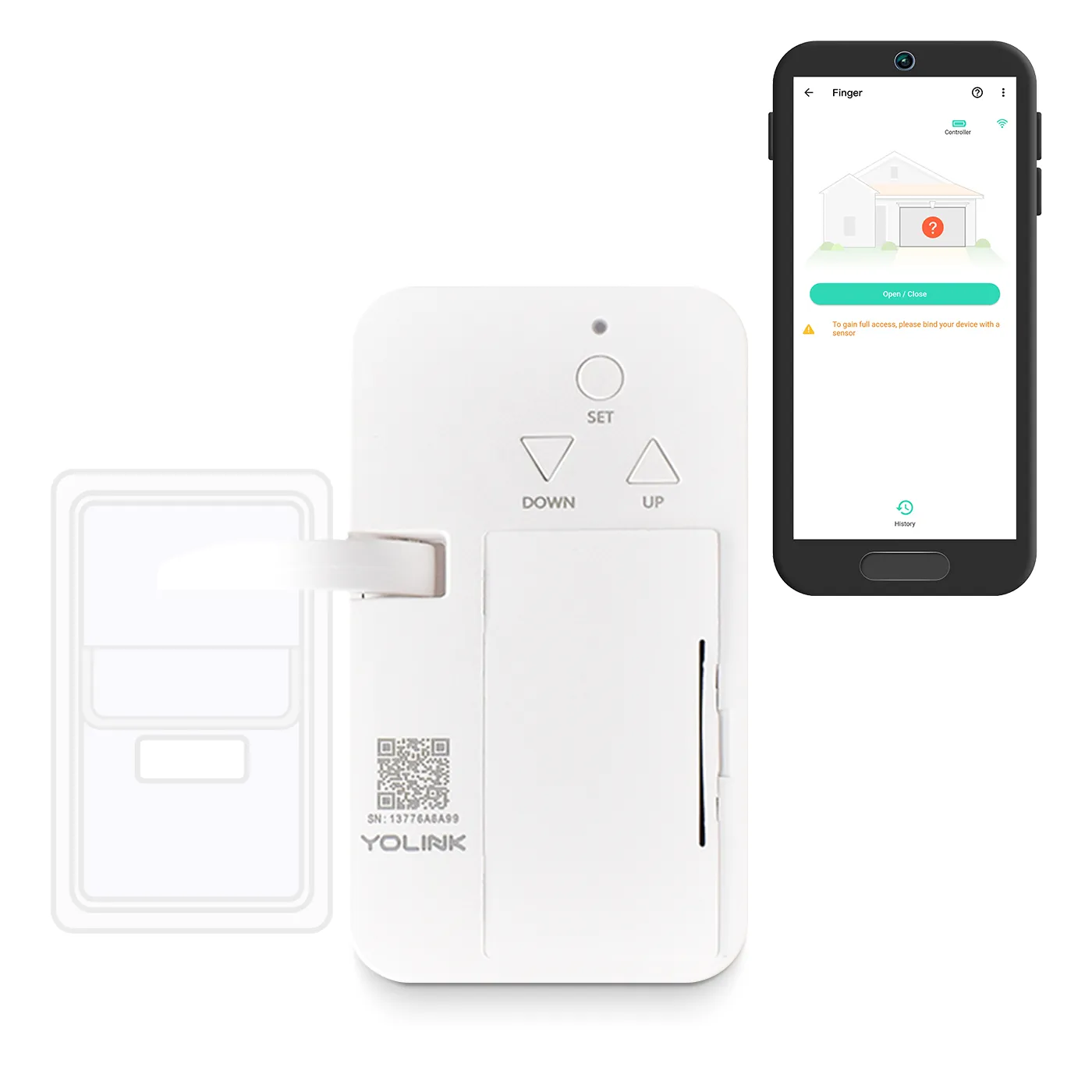

• The YoLink Finger, with a motorized actuator, is installed next to your operator control button, allowing for door control by the YoLink app
• The optional Garage Door Sensor monitors and reports the open/closed status of the garage door
• YoLink Control-D2D device-to-device pairing allows for the optional Garage Door Sensor to directly control other YoLink devices, without an internet connection
• YoLink's industry-leading long range communication and low-power operation
• Alexa and Google voice assistant integration (Alexa control by voice with access code, or by YoLink scene control without code - user must create a scene in automation that operates the door)

BENEFITS:

• Surprisingly simple installation, that requires no special technical knowledge or tools, thanks to factory-installed 3M™ brand double-sided mounting tape
• Add to your YoLink system quickly and easily using the YoLink app with Scan & Play
• Use the YoLink app and always know the open/closed status of your garage door, from anywhere at any time
• Use the YoLink app to remotely close or open your garage door
• Keep your family, home, and property safe with the Open-Remind app feature, which will inform you when the garage door is left open too long
• As part of your long-range/low-power YoLink smart home system, enjoy the reliability and carefree operation with garage door sensor batteries that can last 5 or more years, and Finger batteries lasting 3 or more years, compared to less than 2 for other brands

 REQUIREMENTS:

• YoLink Hub with an internet connection (wired Ethernet or 2.4GHz Wi-Fi)
• Garage Door Opener
• Smartphone or tablet running iOS 9 or higher, Android 4.4 or higher
• Tools Required: None
• Installation Difficulty Level: Extremely easy

SUGGESTED PRODUCTS:

• Y is required. Starting your first YoLink system? Consider our
• Pair your YoLink Finger with the YoLink to obtain the open/closed status of the garage door
• Add an AlarmFob or FlexFob, to control your garage door as well as other YoLink devices (and more!)

TECHNICAL SPECS:

• Semtech LoRa RF Module YL09 microcontroller with 32-Bit RISC processor
• Color: White

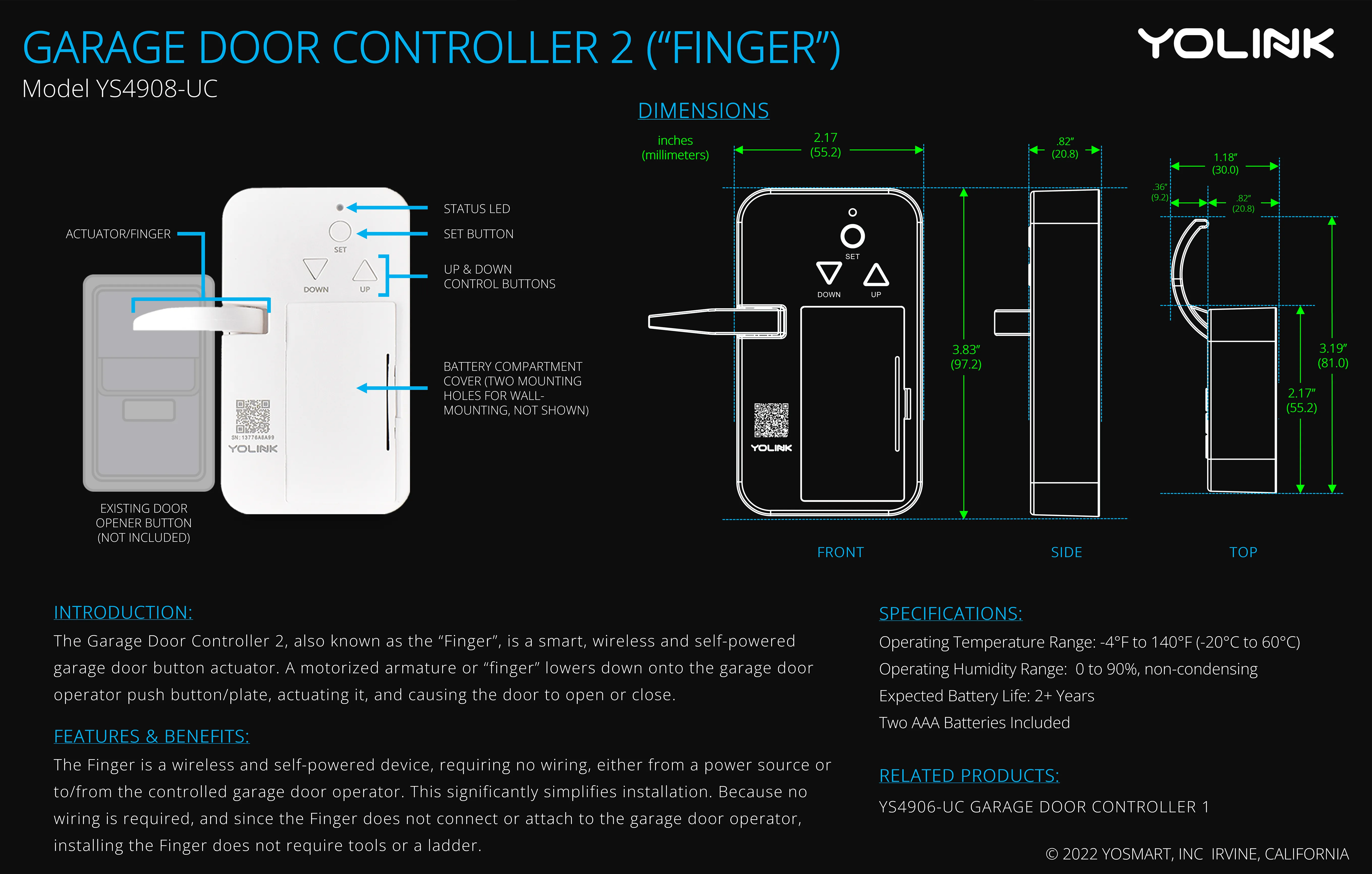

• Dimensions: [L x W x D]: 3.82 x 3.19 x 0.87 inches (97.03 x 81.03 x 22.1 mm)
• Multi-color status LED
• Set button
• Down Button (Finger)
• Up Button (Finger)
• Power: 2 AA batteries (3V DC)
• Environmental:
  • Operating Temperature Range: -4°F – 104°F (-20°C – 40°C)
  • Operating Humidity Range: 10 – 90% non-condensing
  • Intended for indoor use only

PACKAGE CONTENTS:

• (1) YoLink Finger
• (1)  Quick Start Guide

PLEASE NOTE:

• Garage door operators can be dangerous if not installed or used properly. Please read the before installation and follow all safety recommendations.

ADDITIONAL RESOURCES:

• YoLink Website:
• YoLink Facebook page:
• YoLink YouTube channel (under construction):
• Questions? Need system design assistance? Contact a System Architect via email:

 VIDEOS:

• For more videos:
